If you’ve ever looked at computer memory specifications, you might have encountered the term “SDRAM.” While largely superseded by its faster successor, DDR SDRAM, understanding SDRAM is crucial for grasping the evolution of computer memory. This post will explain what SDRAM is, how it works, its advantages and disadvantages, and where it fits in the history of RAM.

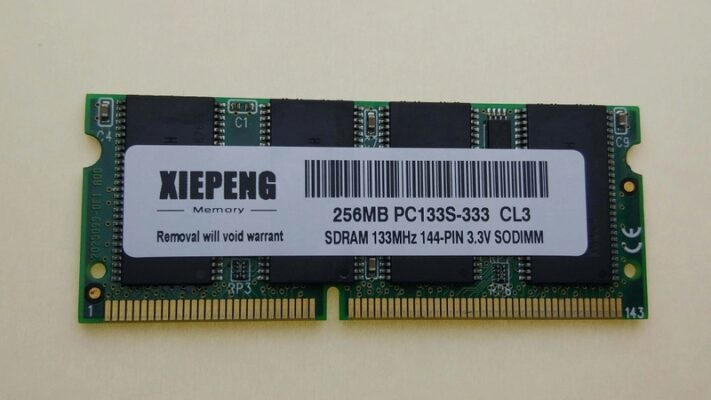

What is SDRAM?
SDRAM (Synchronous Dynamic Random-Access Memory) is a type of computer memory (RAM) that operates in synchronization with the system clock. This synchronization is the key feature that distinguishes it from older, asynchronous DRAM.
Think of your computer’s motherboard as having a central “heartbeat” – the system clock. This clock signal coordinates all the different components, ensuring they work together smoothly. SDRAM is designed to operate in perfect time with this heartbeat.
How SDRAM Works
SDRAM operates by synchronizing its memory operations with the system’s clock signal. This synchronization is the key to its efficiency, allowing for faster data transfers compared to older asynchronous memory types. Let’s delve into the mechanics.
At its core, SDRAM, or Synchronous Dynamic Random-Access Memory, relies on a structured system of memory cells. These cells, essentially tiny capacitors and transistors, hold the bits of data. However, capacitors naturally lose their charge over time. Therefore, SDRAM must periodically refresh these charges to maintain data integrity-hence, the “dynamic” aspect.
Advantages of SDRAM
SDRAM offers several key advantages, primarily centered around improved speed and efficiency compared to its predecessors. This makes it a foundational technology in modern computing. Let’s break down these benefits.
Enhanced System Performance
Because of its synchronized operation, SDRAM significantly boosts overall system performance. Faster data access leads to quicker application loading and smoother multitasking. When a computer opens a program or processes data, it relies heavily on RAM.
SDRAM’s ability to provide data rapidly reduces wait times, making the system more responsive. For example, in a gaming scenario, SDRAM allows for faster loading of game levels and reduces stuttering during gameplay.
Wide Availability and Affordability
SDRAM has been a staple in computing for many years, leading to its widespread availability. This widespread adoption has driven down production costs, making it a relatively affordable memory solution. Compared to newer, more advanced memory technologies, like the latest DDR generations, older SDRAM modules are often more budget-friendly.
This affordability makes it a viable option for older systems or budget-conscious consumers. For instance, a small business upgrading older office computers might find that SDRAM provides a cost-effective performance boost.
Improved Data Transfer Rates
The synchronization with the clock allows for increased data transfer rates. This means that more data can be moved in a given time frame. To illustrate, consider a highway with synchronized traffic lights. When the lights are timed correctly, traffic flows smoothly and efficiently. Similarly, SDRAM’s clock synchronization maximizes data throughput. This is particularly important for applications that require high bandwidth, such as video editing or 3D rendering.
Efficient Memory Management
SDRAM’s architecture, including its bank structure, allows for efficient memory management. Concurrent access to different memory banks minimizes idle time. For instance, while one bank is processing a read request, another bank can be preparing for the next request.
This parallel processing improves overall memory utilization. Imagine a warehouse where multiple workers can retrieve items simultaneously from different sections. This parallel access is similar to SDRAM’s bank structure.
Disadvantages of SDRAM
While SDRAM has been a cornerstone of computing, it also presents several limitations. Its volatility and the need for refresh cycles are primary drawbacks. Furthermore, compared to modern memory technologies, it exhibits lower speeds. Let’s examine these disadvantages.
Requirement for Refresh Cycles
SDRAM’s reliance on capacitors for data storage necessitates periodic refresh cycles. These refresh cycles consume power and introduce latency. Since capacitors naturally lose their charge over time, SDRAM must periodically rewrite the data to maintain its integrity.
This process, while essential, adds overhead and can slightly impact performance. Imagine a gardener who must constantly water plants to keep them alive; this constant maintenance is analogous to SDRAM’s refresh cycles.
Lower Speeds Compared to Modern Memory
Compared to newer memory technologies, such as DDR4 and DDR5 SDRAM, the original SDRAM is relatively slow. This speed difference can significantly impact system performance in modern applications. For example, running demanding applications or games on a system with older SDRAM will result in noticeable performance bottlenecks. Modern software and applications are designed to leverage the higher bandwidth and lower latency of newer memory technologies.
Limited Bandwidth
The bandwidth of SDRAM is limited compared to modern memory standards. This limitation can restrict the amount of data that can be transferred per second. Bandwidth, the rate at which data can be read from or written to memory, is critical for tasks requiring high data throughput.
For instance, video editing or 3D rendering applications benefit greatly from high bandwidth memory. Older SDRAM modules cannot provide the same level of data transfer as modern DDR modules, leading to slower processing times.
SDRAM Speeds and Standards
JEDEC Standards
The Joint Electron Device Engineering Council (JEDEC) sets the standards for SDRAM and other memory technologies. These standards ensure compatibility and interoperability between different memory modules and systems. For example, JEDEC defines the specifications for various SDRAM generations, including DDR, DDR2, DDR3, DDR4, and DDR5. These standards dictate the operating voltage, clock speeds, and timings for each generation.
Clock Speed and Data Transfer Rate
The clock speed directly impacts the data transfer rate. Higher clock speeds enable faster data movement. For instance, an SDRAM module with a 133 MHz clock speed will have a higher data transfer rate than one with a 100 MHz clock speed.
The data transfer rate is often expressed in MT/s, indicating the number of million transfers per second. For example, a DDR SDRAM module might have a data transfer rate of 200 MT/s, meaning it can transfer 200 million data units per second.
Latency and Timings
Latency, measured in clock cycles, is another critical aspect of SDRAM speed. It represents the delay between a memory request and the availability of data. Lower latency means faster data access. CAS latency (CL), for example, specifies the delay between the memory controller requesting data from a column and the data being available. For example, a CL of 3 means there are 3 clock cycles of delay. Other timings, such as RAS latency (RL), also contribute to overall latency.
SDRAM Generations
SDRAM has evolved through several generations, each offering improved speeds and efficiency. DDR SDRAM, for example, doubles the data transfer rate by transferring data on both the rising and falling edges of the clock signal.
Subsequent generations, such as DDR2, DDR3, DDR4, and DDR5, have further increased speeds and reduced power consumption. For example, DDR4 offers significantly higher bandwidth and lower voltage compared to DDR3. Each generation has specific JEDEC standards that define its characteristics.
Examples of SDRAM Speeds
- PC100 SDRAM: Operates at 100 MHz.
- PC133 SDRAM: Operates at 133 MHz.
- DDR 200: Operates at 100 MHz with a 200 MT/s data transfer rate.
- DDR 400: Operates at 200 MHz with a 400 MT/s data transfer rate.
- DDR4 3200: Operates at 1600 MHz with a 3200 MT/s data transfer rate.
SDRAM vs. DRAM
The key difference between SDRAM and DRAM lies in their synchronization. SDRAM operates synchronously with the system clock, while DRAM is asynchronous. This distinction significantly impacts their performance. Let’s explore the nuances.
DRAM, or Dynamic Random-Access Memory, is the predecessor to SDRAM. Traditional DRAM operates asynchronously, meaning its operations are not synchronized with the system’s clock signal. This lack of synchronization leads to timing uncertainties and slower data transfers. In contrast, SDRAM, or Synchronous Dynamic Random-Access Memory, synchronizes its operations with the system clock, allowing for precise timing and faster data access. Imagine a team of runners; asynchronous DRAM is like runners running at their own pace, while SDRAM is like runners synchronized by a starter pistol.
Applications of SDRAM
Servers
Servers rely heavily on SDRAM to handle large volumes of data and multiple user requests. SDRAM provides the necessary speed and capacity for efficient server operations. In data centers, servers process vast amounts of data, and SDRAM ensures that this data is readily available. For instance, a web server hosting a popular website uses SDRAM to store frequently accessed data, reducing load times for users.
Graphics Cards
Graphics cards utilize specialized SDRAM, known as GDDR (Graphics Double Data Rate), for high-speed graphics processing. GDDR SDRAM is optimized for the high bandwidth requirements of graphics rendering. When playing video games or working with 3D modeling software, the graphics card’s GDDR SDRAM stores textures and other graphical data, enabling smooth and detailed visuals. For example, a high-end gaming graphics card uses GDDR6 or GDDR6X SDRAM to handle the demands of modern games.
Embedded Systems
SDRAM is used in various embedded systems where fast memory access is crucial. These systems often require real-time data processing and efficient memory management. For instance, in automotive systems, SDRAM is used to store data for navigation systems and engine control units. In industrial automation, SDRAM is used in programmable logic controllers (PLCs) to handle real-time data acquisition and control.
Networking Equipment
Networking equipment, such as routers and switches, uses SDRAM for high-speed data handling. SDRAM enables these devices to process network traffic efficiently. In routers, SDRAM stores routing tables and packet buffers, allowing for fast packet forwarding. In switches, SDRAM stores MAC address tables and other network data. For example, a high-performance network switch uses SDRAM to manage the flow of data packets across the network.
Consumer Electronics
SDRAM is also found in various consumer electronics devices. It provides the necessary memory for devices requiring fast data processing. For instance, digital cameras use SDRAM to buffer image data before it is written to the storage card. In smart TVs, SDRAM is used to store data for video processing and application execution.
Telecommunications
Telecommunications equipment employs SDRAM for various functions, including signal processing and data buffering. SDRAM enables these devices to handle high-speed data transmission and processing. For example, in cellular base stations, SDRAM is used to store data for signal processing and call management.
SDRAM represents a significant milestone in the evolution of computer memory. Its introduction of synchronous operation paved the way for the faster and more efficient DDR SDRAM technologies that power our devices today. While no longer used in new computer systems, understanding SDRAM provides valuable context for appreciating the advancements in modern memory technology.
